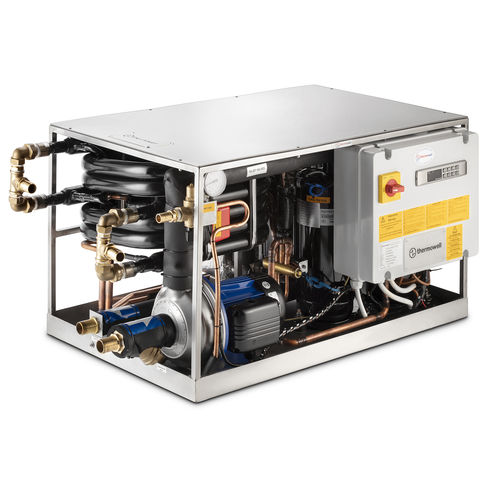

UCP is Thermowell’s series of sea water condensed chiller systems, available both in cooling only and heat pump version, specifically designed for installation into the biggest vessels. UCP chillers are used to cool / heat a water – glycol mixing which flows through a net of insulated pipes reaching every ambient inside the vessel where a fan coil is installed. Compact in sizes and easy in handling and maintenance, these units are the best choice for new and used or under refitting vessels.
UCP are available in 12 sizes, from 16,000 up to 150,000 BTU/h cooling power, in cooling only version or heat pump version with reverse cycle. All components (high efficiency and noiseless compressors, corrosion resistant copper-nickel condenser, high and low pressure switches, thermostatic expansion valves) are assembled on a 100% stainless steel case which assures a long life service and the collection of great quantity of condensate. In order to make installation of the air conditioning system as simple is possible, these units are supplied with a certain number of accessories already built-in, such as fresh water circulation pump, fresh water tank, expansion vessel, filling kit with manometer, sea water pressure sensor, automatic bleed valve.
These units are equipped with a highly innovative electronic controller (eventually remotable for installation into the pilothouse or other technical rooms) which manages all the functions of the chiller as well as the failures diagnostics through well-defined alarm codes. Each unit is pre-charged, leak checked and tested in all operating modes at the most critical conditions.
