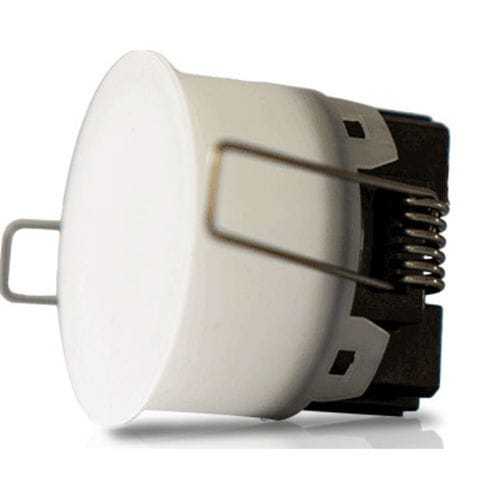

Точечный светильник для наружного освещения SMARTSPOT 50 ON-OFF

для внутреннего освещениядля катераосвещения

Présentation
The ultimate recessed downlight generation. Embedded electronics, latest generation LED, smart.

Ghost shape
Thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame is customizable and must be ordered separately if required.

Homogeneous light surface
The use of a technological material for the lens delivers an incredibly homogeneous enlightened surface; when the downlight is turned off it completely hides all internal components for an elegant aesthetic.

Powerful light
The light is emitted by 8 OSRAM LEDs arranged according to a luminous flux study to obtain optimal results. Standard colour temperature is 3.000K (warm white) and can be customized on request.

Construction and corrosion resistance
The total plastic body eliminates the risk of galvanic currents and potential corrosion, making the downlight safe for marine applications and keeping it looking as new.

Fade effect and dimming
Both turning ON and OFF occur with a smooth fade in / fade out effect to soften light change impact. SMARTSPOT supports true deep dimming from 100% down to 0% (not simple PWM), providing soft intensity changes and relaxing ambient light.

Electronics and protections
Contains automotive-qualified electronic components for resistance to battery voltage peaks. The device includes an automatic shut-off system to prevent damage in case of overvoltages. Protections include polarity reverse, overheating, short circuits, electrostatic charges and voltage peaks. The device is designed to withstand up to 60Vdc; from 32Vdc up to 60Vdc the device automatically shuts down to prevent damage.

Installation & compatibility
Suitable for 24Vdc systems; can be used on 230Vac systems by installing an additional power supply unit. Reduced encumbrance: total height is just 44.4 mm, enabling installation in limited spaces.

Ingress protection & compliance
IP68 waterproof rating allows installation in internal rooms and external corridors. EMC compliant (2014/30/EU) and RoHS (2011/65/EU).

Applications
Recessed marine and architectural downlight where compact size, waterproofing, homogeneous lighting and high reliability against voltage peaks are required.

Caractéristiques / spécifications techniques

• Product code: SLMXWHI01
• Denomination commerciale: SMARTSPOT 50 ON-OFF
• Luminous intensity: 400 lm (WHITE)
• Output power: 4,8 W
• Power supply: 24 Vdc (compatible with 230 Vac via external PSU)
• Absorption: Max 0,20 A @ 24 Vdc
• Light colour: White 3.000 K (OSRAM LED). Other white temperatures available on request.
• Driver type: internal
• Dimmable: Yes — true deep dimming mode (100% → 0%)
• Fade in / Fade out effect: Yes
• Protections: polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks
• Resistance to voltage peaks: 60 Vdc (device auto-shuts from 32 Vdc up to 60 Vdc)
• Lens material: technological plastic
• Heatsink material: dissipative plastic
• Body: total plastic (no galvanic currents / corrosion)
• LEDs: 8 OSRAM LEDs
• Dimensions: Diameter 50 mm x thickness 44,4 mm
• Ingress protection: IP68 (waterproof)
• Compliances: RoHS 2011/65/EU; Electromagnetic compatibility 2014/30/EU
• System typology: Standard
• Operating modes: ON/OFF and dimming
